| CATEGORY | SPECIFICATION |
|---|---|
| Model |

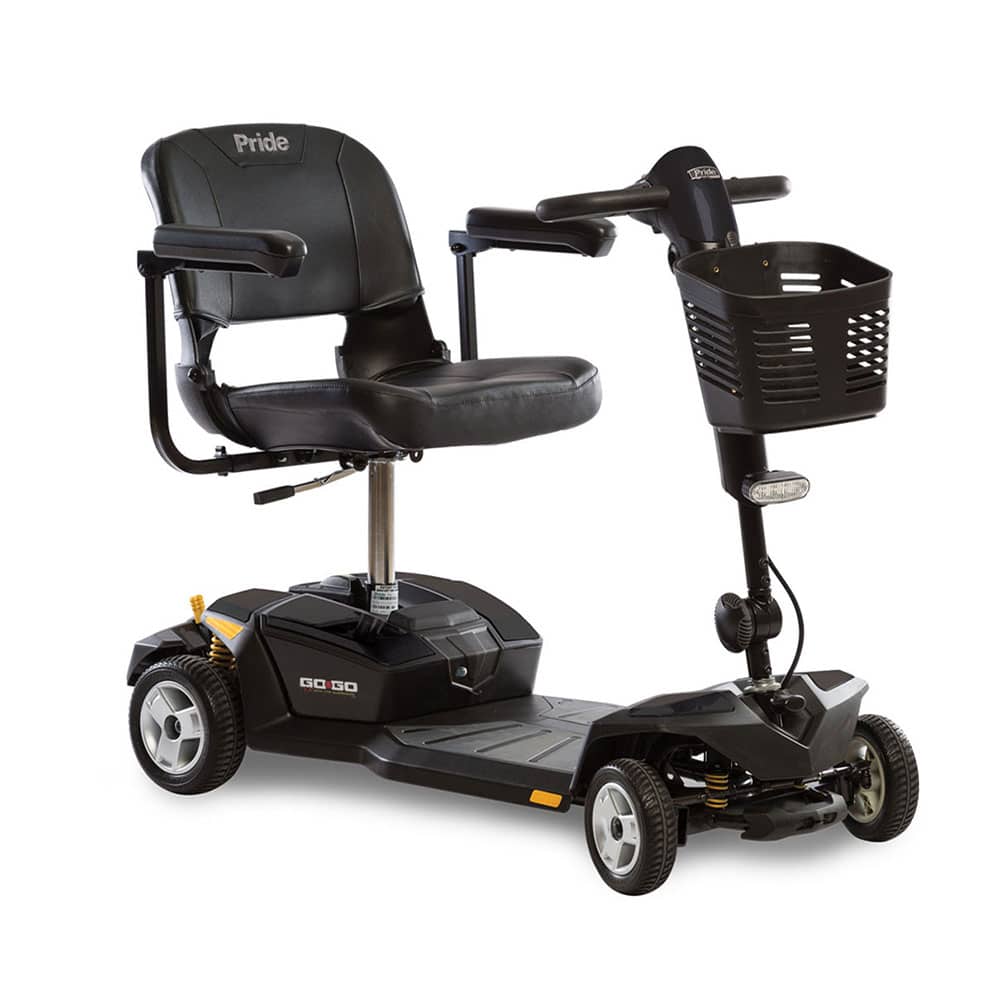

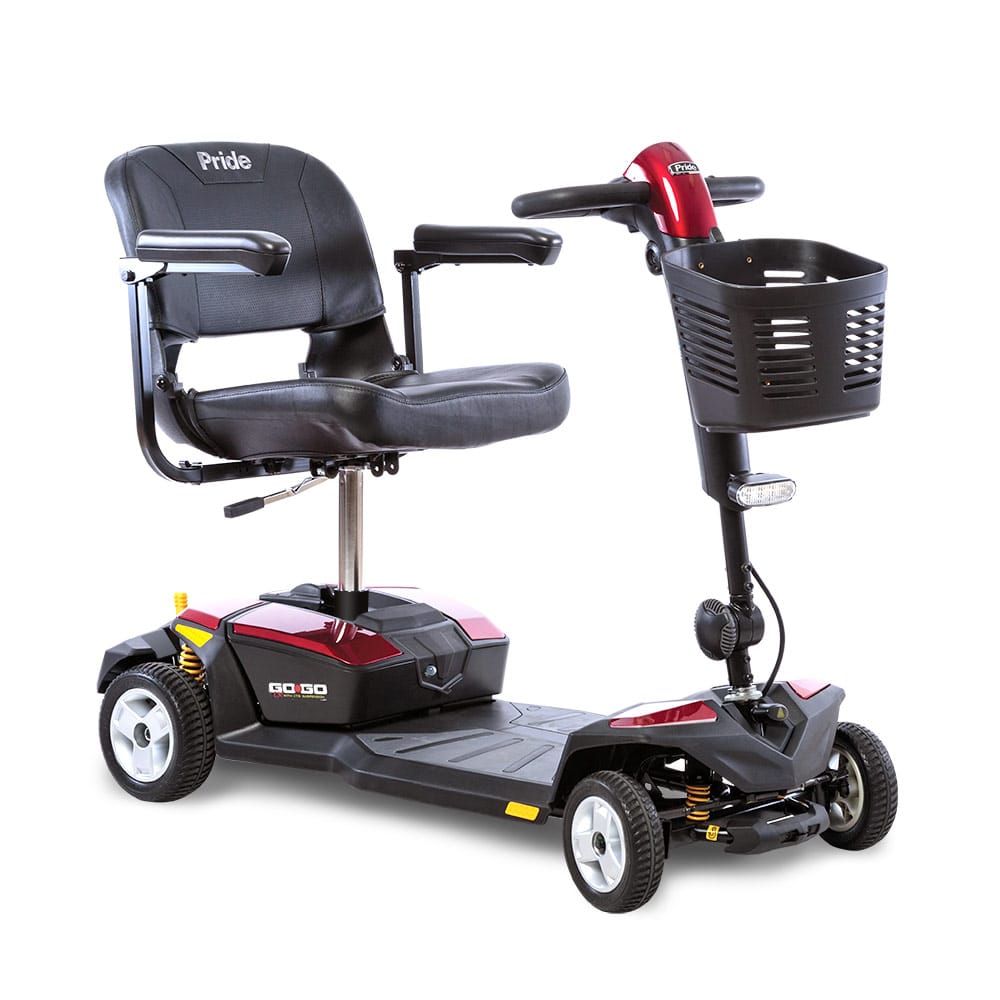

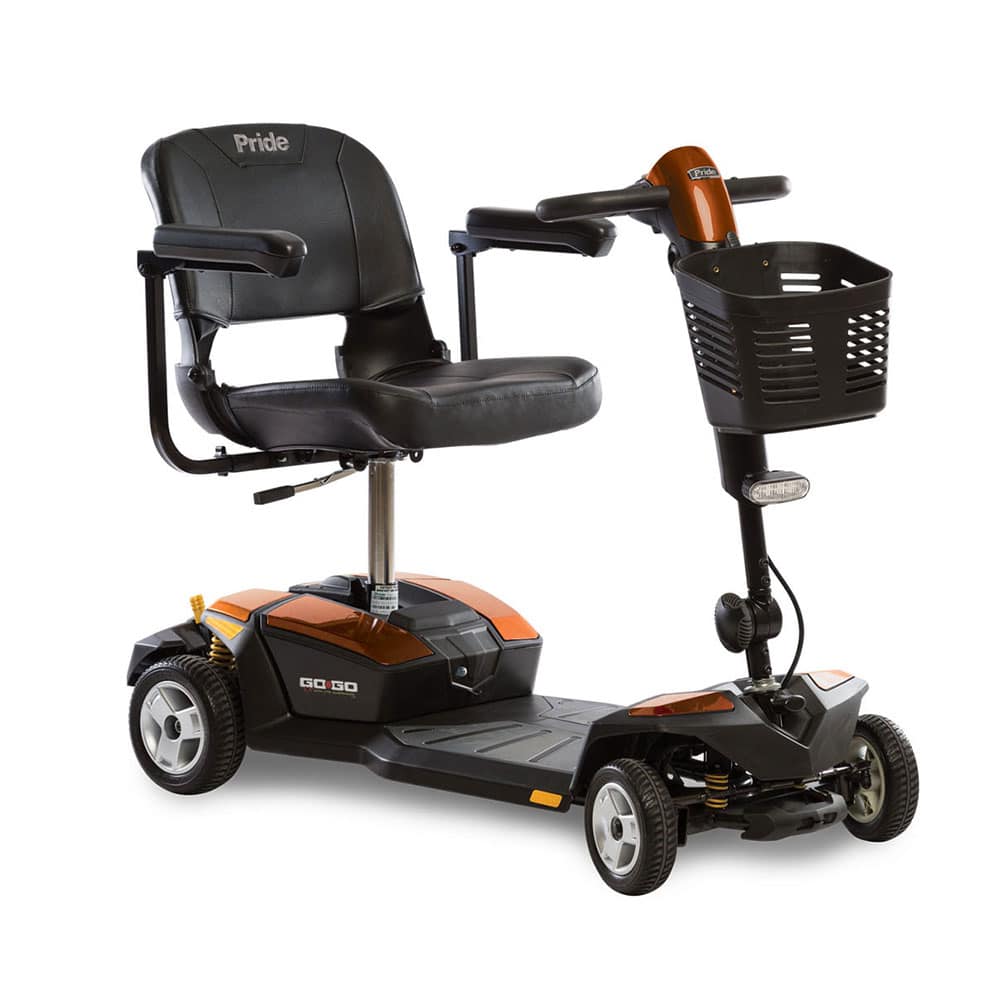

Go-Go? LX with CTS Suspension 4-Wheel
|
| Model Number |
S54LX
|
| Turning Radius** | 44.75″ |
| Overall Width of Base** | 20.5″ |
| Overall Length** | 41″ |
| Maximum Speed* | Up to 4.4 mph |
| Ground Clearance | 0.75″ at anti-tip |
| Front Tires | 2″ x 7″ solid |
| Rear Tires | 2.5″ x 8″ solid |
| Seat-to-Ground Height Range | 20.75″-22.25″ |
| Seat Type | Compact, foldable (17″x17″) |
| Weight** | 87 lbs. |
| Battery Requirements | (2) 12AH |
| Maximum Range Per Charge* | Up to 8.6 miles (12AH) |
| Battery Charger | Off-board, 2A |
| Maximum Weight Capacity | 300 lbs. |
| Standard Body Colors | Red and blue interchangeable shroud panels |
| Weight of Heaviest Piece** | 37 lbs. |
| Seat-to-Deck Height Range | 16.25″-17.25″ |
| Battery Weight | 12AH 9 lbs. each |
| Suspension | CTS (Comfort-Trac front and rear suspension) |
| Medicare Code Coverage | K0899 ? power mobility device, not coded by DME PDAC or does not meet criteria |
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.
**Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%
